IX4426 Datasheet, Mosfet, IXYS

IX4426 Features

• Mosfet
• 1.5A Peak Output Current
• Wide Operating Voltage Range: 4.5V to 35V
• -40°C to +125°C Operating Temperature Range
• Latch-up Protected to 1.5A

PDF File Details

Part number:

IX4426

Manufacturer:

IXYS

File Size:

247.26kb

Download:

📄 Datasheet

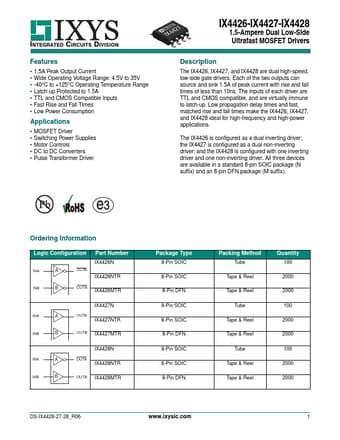

Description:

1.5-ampere dual low-side ultrafast mosfet. The IX4426, IX4427, and IX4428 are dual high-speed, low-side gate drivers. Each of the two outputs can source and sink 1.5A of peak c

IX4426 Application

• Applications
• MOSFET Driver
• Switching Power Supplies
• Motor Controls
• DC to DC Converters
• Pulse Trans
