IX4310T Datasheet, Driver, IXYS

IX4310T Features

• Driver
• Output Capable of Sourcing and Sinking 2A
• CMOS and TTL Compatible Inputs
• 5V to 24V Supply Voltage Range
• UVLO
• Fast Propagation Delays (1

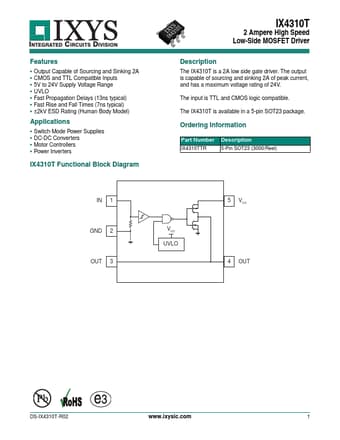

PDF File Details

Part number:

IX4310T

Manufacturer:

IXYS

File Size:

237.96kb

Download:

📄 Datasheet

Description:

Low-side mosfet driver. The IX4310T is a 2A low side gate driver. The output is capable of sourcing and sinking 2A of peak current, and has a maximum voltage

IX4310T Application

• Applications
• Switch-Mode Power Supplies
• DC-DC Converters
• Motor Controllers
• Power Inverters IX4310T Functiona
