IX4351NE Datasheet, Mosfet/igbt, IXYS

IX4351NE Features

• Mosfet/igbt
• Separate 9A peak source and sink outputs
• Operating Voltage Range: -10V to +25V
• Internal charge pump regulator for selectable negative gate drive bias

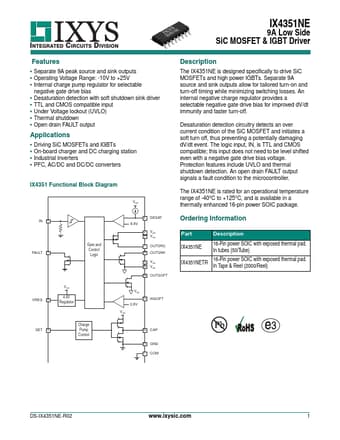

PDF File Details

Part number:

IX4351NE

Manufacturer:

IXYS

File Size:

325.83kb

Download:

📄 Datasheet

Description:

9a low side sic mosfet/igbt. The IX4351NE is designed specifically to drive SiC MOSFETs and high power IGBTs. Separate 9A source and sink outputs allow for tailor

IX4351NE Application

• Applications
• Driving SiC MOSFETs and IGBTs
• On-board charger and DC charging station
• Industrial inverters
• PFC

TAGS

IX4351NE

IXYS
