IXA60IF1200NA - XPT IGBT

IXYS

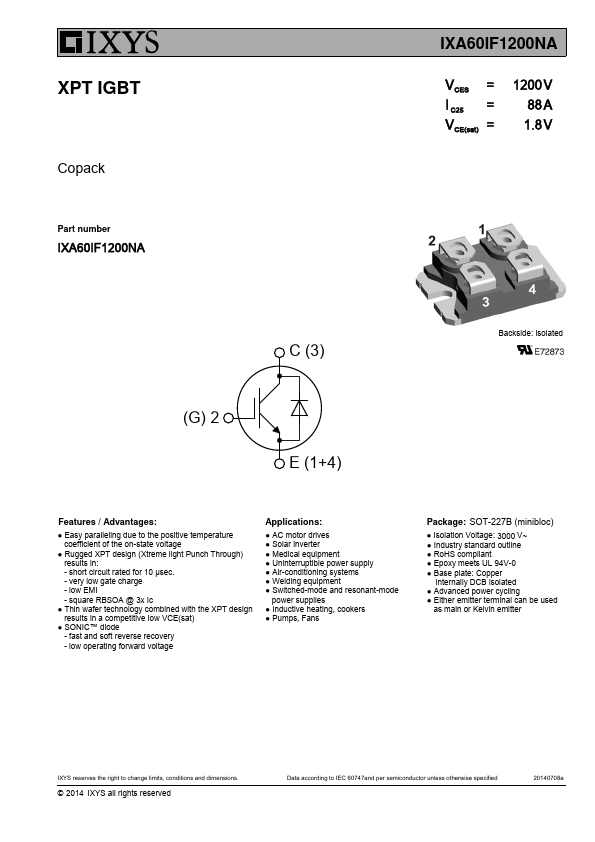

IXA60IF1200NA Datasheet Preview — Preview of IXA60IF1200NA PDF

Datasheet Details

Part number	IXA60IF1200NA
Manufacturer	IXYS
File Size	199.55 KB
Description	XPT IGBT
Datasheet	IXA60IF1200NA_IXYS.pdf

IXA60IF1200NA Product details

Description

I = IGBT X = XPT IGBT A = Gen 1 / std 60 = Current Rating [A] IF = Copack 1200 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number IXA60IF1200NA Marking on Product IXA60IF1200NA Delivery Mode Tube Quantity Code No.10 508765 Similar Part IXA70I1200NA Package SOT-227B (minibloc) Voltage class 1200 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance on die level IGBT 1.

Features

/ Advantages:.
Easy paralleling due to the positive temperature coefficient of the on-state voltage.
Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 3x Ic.
Thin wafer technology combined with the XPT design results in a competitive low VCE(sat).
SONIC™ diode - fast and soft reverse recovery - low operating forward voltage.
