IXA17IF1200HJ XPT IGBT

IXA17IF1200HJ Description

XPT IGBT Copack Part number IXA17IF1200HJ IXA17IF1200HJ VCES = I C25 = V = CE(sat) 1200 V 28 A 1.8 V (G) 1 2 (C) 3 (E) Backside: isolated Fe.

IXA17IF1200HJ Features

* / Advantages:
* Easy paralleling due to the positive temperature coefficient of the on-state voltage
* Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 3x Ic
* Thin wafer technology combined wi

IXA17IF1200HJ Applications

* AC motor drives
* Solar inverter
* Medical equipment
* Uninterruptible power supply
* Air-conditioning systems
* Welding equipment
* Switched-mode and resonant-mode power supplies
* Inductive heating, cookers
* Pumps, Fans Package: ISOPLUS247
* Isolation V

📥 Download Datasheet

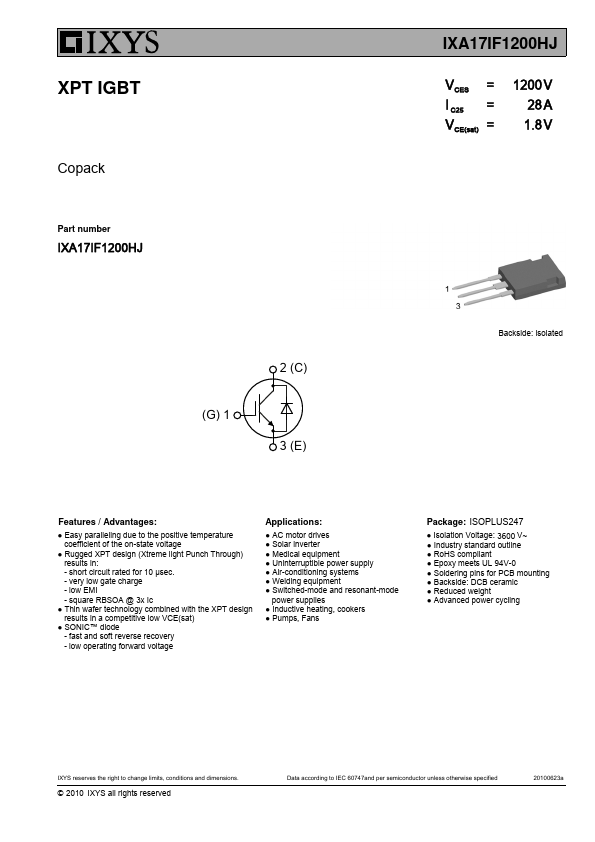

Preview of IXA17IF1200HJ PDF

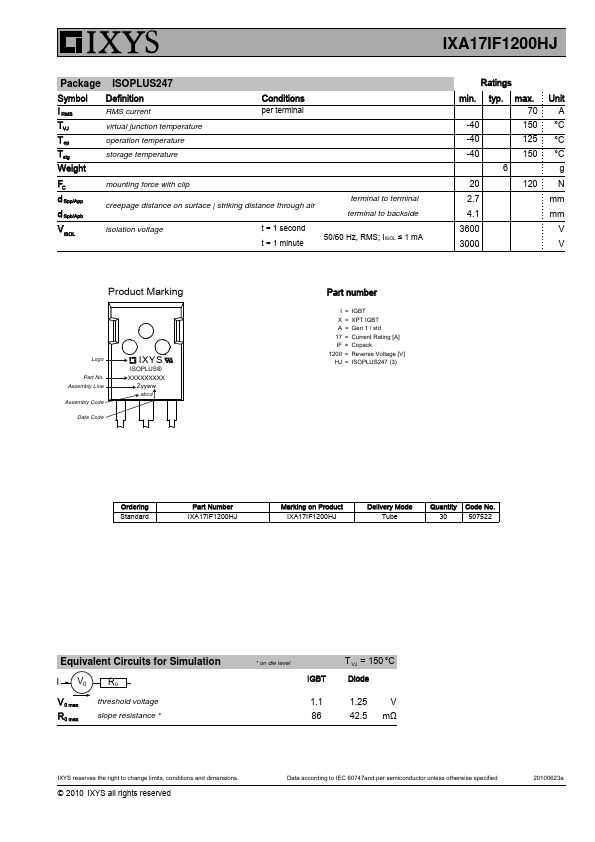

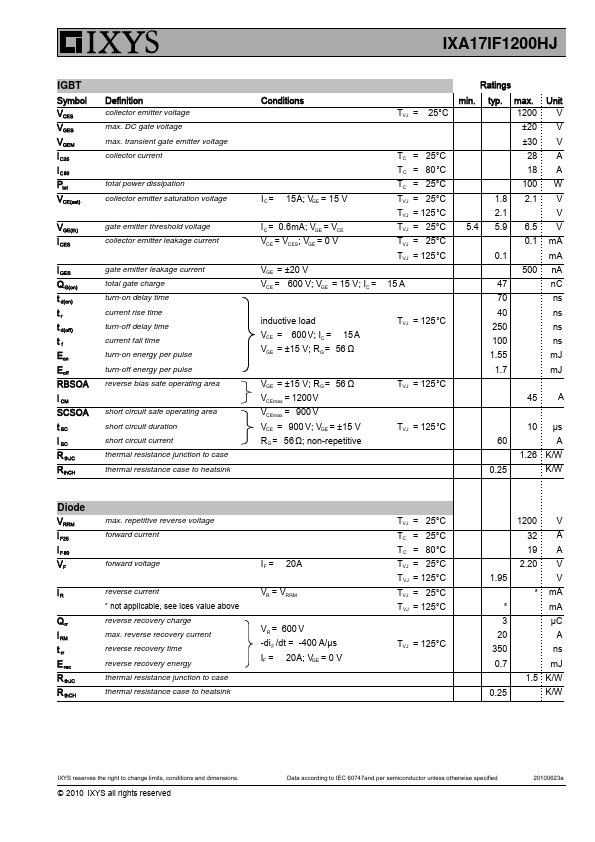

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXA17IF1200HJ
Manufacturer
IXYS
File Size
175.17 KB
Datasheet
IXA17IF1200HJ_IXYS.pdf
Description
XPT IGBT
