IXDD414YI - 14 Amp Low-Side Ultrafast MOSFET Driver

Product Overview

IXYS

Datasheet Details

Part number	IXDD414YI
Manufacturer	IXYS
File Size	470.42 KB
Description	14 Amp Low-Side Ultrafast MOSFET Driver
Datasheet	IXDD414YI Datasheet
Note	This datasheet PDF includes multiple part numbers: IXDD414YI, IXDD414SI. Please refer to the document for exact specifications by model.

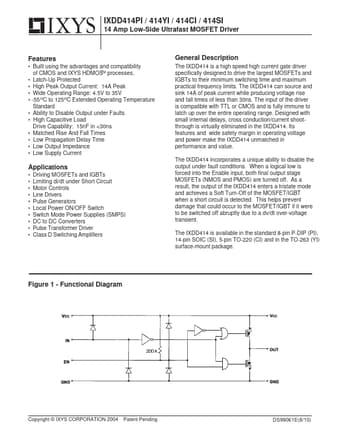

Additional preview pages of the IXDD414YI datasheet.

Product details

Description

The IXDD414 is a high speed high current gate driver specifically designed to drive the largest MOSFETs and IGBTs to their minimum switching time and maximum practical frequency limits.

Features

Built using the advantages and compatibility TM of CMOS and IXYS HDMOS processes.
Latch-Up Protected.
High Peak Output Current: 14A Peak.
Wide Operating Range: 4.5V to 35V.
-55 oC to 125 oC Extended Operating Temperature Standard.
Ability to Disable Output under Faults.
High Capacitive Load Drive Capability: 15nF in.
