IXDD504 - 4 Ampere Dual Low-Side Ultrafast MOSFET Drivers

IXDD504 Description

IXDD504/ IXDE504 4 Ampere Dual Low-Side Ultrafast MOSFET Drivers with Enable for fast, controlled shutdown .
The IXDD504 and IXDE504 each consist of two 4-Amp CMOS.

IXDD504 Features

* Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes
* Latch-Up Protected up to 4 Amps
* High 4A Peak Output Current
* Wide Operating Range: 4.5V to 30V
* -55°C to +125°C Extended Operating Temperature
* Ability to Disable

IXDD504 Applications

* Limiting di/dt under Short Circuit
* Driving MOSFETs and IGBTs
* Motor Controls
* Line Drivers
* Pulse Generators
* Local Power ON/OFF Switch
* Switch Mode Power Supplies (SMPS)
* DC to DC Converters
* Pulse Transformer Driver

📥 Download Datasheet

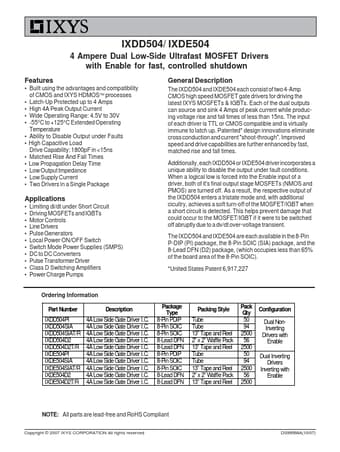

Preview of IXDD504 PDF
