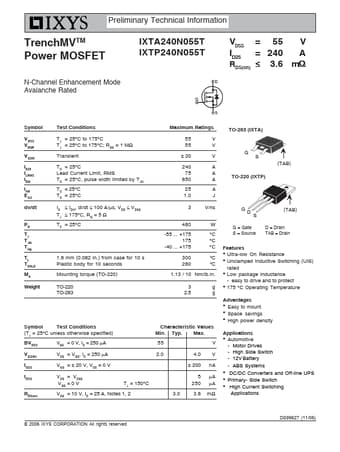

Preliminary Technical Information TrenchMVTM Power MOSFET IXTA240N055T IXTP240N055T N-Channel Enhancement Mode Avalanche Rated VDSS = ID25 = RDS(on) ≤ 55 240 3.6 V A mΩ Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS TJ ≤ 175°C, RG = 5 Ω TC = 25°C .

IXTP240N055T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 °C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - High Side Switch - 12V Battery - ABS Systems DC/DC C
