IXTP28P065T, IXTA28P065T Datasheet - IXYS

IXTP28P065T - Power MOSFET

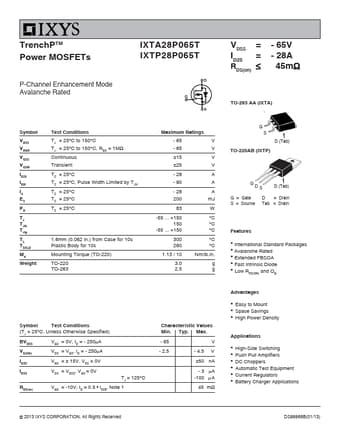

TrenchPTM Power MOSFETs P-Channel Enhancement Mode Avalanche Rated IXTA28P065T IXTP28P065T VDSS = ID25 = ≤ RDS(on) - 65V - 28A 45mΩ TO-263 AA (IXTA) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA ES PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s Mounting Torque (TO-220) TO-220 TO-263 Maximum .

IXTP28P065T Features

* z International Standard Packages z Avalanche Rated z Extended FBSOA z Fast Intrinsic Diode z Low RDS(ON) and QG Symbol Test Conditions (TJ = 25°C, Unless Otherwise Specified) BVDSS VGS = 0V, ID = - 250μA VGS(th) VDS = VGS, ID = - 250μA IGSS VGS = ± 15V, VDS = 0V IDSS VDS = VDSS, VGS = 0V
