* International Standard Package
* Optimized for 20-60kHz Switching
* Square RBSOA
* Avalanche Rated
* Short Circuit Capability
* High Current Handling Capability Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS

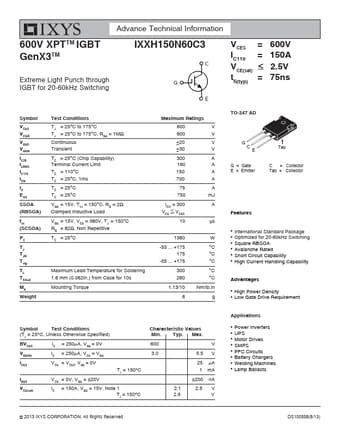

IXXH150N60C3 Datasheet (225.94 KB)
IXXH150N60C3
IXYS
225.94 KB
Igbt.
Advance Technical Information
600V XPTTM IGBT GenX3TM
Extreme Light Punch through IGBT for 20-60kHz Switching
IXXH150N60C3
VCES = 600V
IC110 = 150.
