* z Optimized for 20-60kHz Switching z Square RBSOA z Avalanche Rated z Short Circuit Capability z High Current Handling Capability z International Standard Package Advantages z High Power Density z Low Gate Drive Requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z

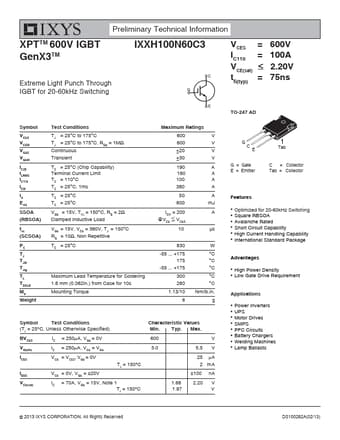

IXXH100N60C3 Datasheet (172.13 KB)
IXXH100N60C3
IXYS
172.13 KB
Igbt.
Preliminary Technical Information
XPTTM 600V IGBT GenX3TM
Extreme Light Punch Through IGBT for 20-60kHz Switching
IXXH100N60C3
VCES = IC110 =
V ≤ C.
