K1120NC360 Medium Voltage Thyristor

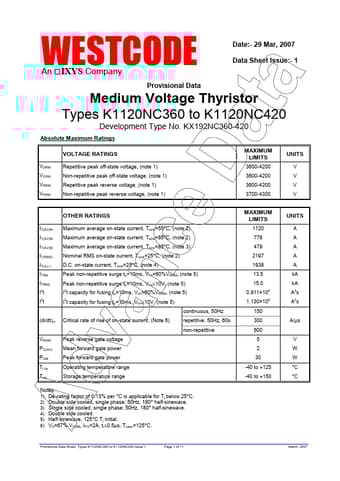

WESTCODE An IXYS Company Date:- 29 Mar, 2007 Data Sheet Issue:- 1 Provisional Data Medium Voltage Thyristor Types K1120NC360 to K1120NC420 Development Type No. KX192NC360-420 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3600-4200 3600-4200 3600-4200 3700-4300 UNITS V V V V OTHER RA.
