K1121NC320 Medium Voltage Thyristor

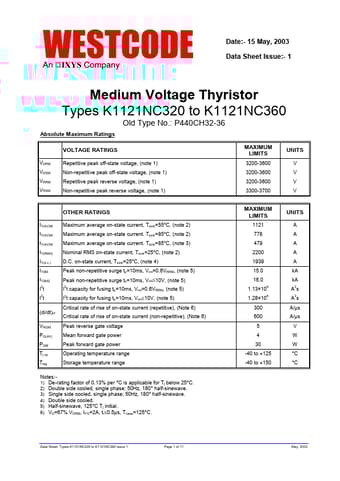

Date:- 15 May, 2003 Data Sheet Issue:- 1 Medium Voltage Thyristor Types K1121NC320 to K1121NC360 Old Type No.: P440CH32-36 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3200-3600 3200-3600 3200-3600 3300-3700 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(AV)M IT(RMS) IT(d.c.) ITSM .
