K1947ZC420, K1947ZC400 Datasheet - IXYS

K1947ZC420 Medium Voltage Thyristor

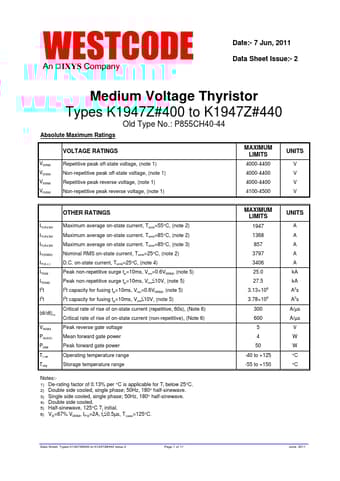

Date:- 7 Jun, 2011 Data Sheet Issue:- 2 Medium Voltage Thyristor Types K1947Z#400 to K1947Z#440 Old Type No.: P855CH40-44 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4000-4400 4000-4400 4000-4400 4100-4500 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(AV)M IT(RMS) IT(d.c.) ITSM I.

K1947ZC400-IXYS.pdf

This datasheet PDF includes multiple part numbers: K1947ZC420, K1947ZC400. Please refer to the document for exact specifications by model.
K1947ZC420 Datasheet Preview Page 2 K1947ZC420 Datasheet Preview Page 3

Datasheet Details

Part number:

K1947ZC420, K1947ZC400

Manufacturer:

IXYS

File Size:

281.02 KB

Description:

Medium voltage thyristor.

Note:

This datasheet PDF includes multiple part numbers: K1947ZC420, K1947ZC400.
Please refer to the document for exact specifications by model.
