LCA210L Datasheet - IXYS

Dual-Pole OptoMOS Relay

LCA210L Features

* Current Limiting

* 3750Vrms Input/Output Isolation

* Low Drive Power Requirements (TTL/CMOS Compatible)

* High Reliability

* Arc-Free With No Snubbing Circuits

* FCC Compatible

* VDE Compatible

* No EMI/RFI Generation

* Small

LCA210L General Description

The LCA210L is a current-limiting, common input, dual normally open (2-Form-A) solid state relay that has two independent MOSFET switch outputs controlled by a common input signal. It employs optically coupled MOSFET technology to provide 3750Vrms of input to output isolation. Its optically coupled .

LCA210L Datasheet (116.49 KB)

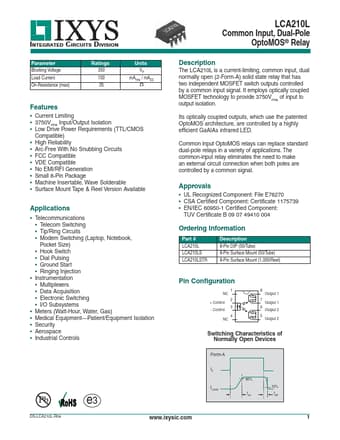

LCA210L Datasheet Preview — Preview of LCA210L PDF

Datasheet Details

Part number:

LCA210L

Manufacturer:

IXYS

File Size:

116.49 KB

Description:

Dual-pole optomos relay.
INTEGRATED CIRCUITS DIVISION LCA210L Common Input, Dual-Pole OptoMOS® Relay Parameter Blocking Voltage Load Current On-Resistance (max) Ratings 350.
