LCA125L

Normally Open OptoMOS Relay

LCA125L Features

* Current Limiting

* 3750Vrms Input/Output Isolation

* Low Drive Power Requirements

* High Reliability

* Arc-Free With No Snubbing Circuits

* FCC Compatible

* VDE Compatible

* No EMI/RFI Generation

* Small 6-Pin Package

LCA125L General Description

LCA125L is a current-limiting, 300V, 170mA, 20, normally open (1-Form-A) solid state relay that uses optically coupled MOSFET technology to provide 3750Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient.

LCA125L Datasheet (148.97 KB)

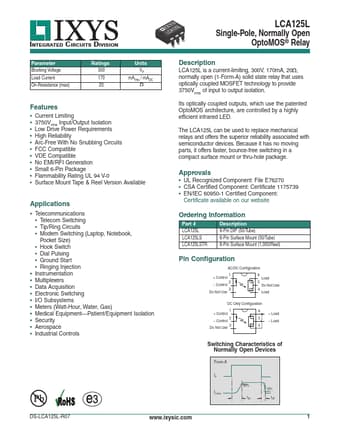

Preview of LCA125L PDF

Datasheet Details

Part number:

LCA125L

Manufacturer:

IXYS

File Size:

148.97 KB

Description:

Normally open optomos relay.
INTEGRATED CIRCUITS DIVISION LCA125L Single-Pole, Normally Open OptoMOS® Relay Parameter Blocking Voltage Load Current On-Resistance (max) Ratings .
