LCA120 - Single Pole OptoMOS Relay

Clare

📥 Download Datasheet

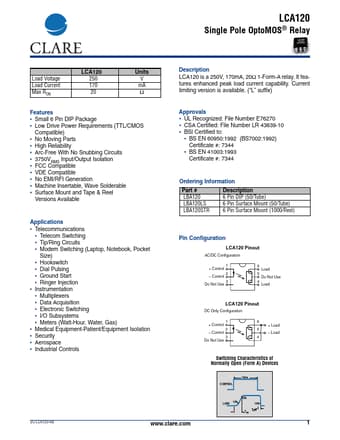

LCA120 Datasheet Preview — Preview of LCA120 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LCA120
Manufacturer	Clare
File Size	153.32 KB
Description	Single Pole OptoMOS Relay
Datasheet	LCA120_ClareInc..pdf

LCA120 Product details

Description

LCA120 is a 250V, 170mA, 20Ω 1-Form-A relay.

Features

enhanced peak load current capability. Current limiting version is available. (“L” suffix) Features.
Small 6 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI Generation.
Machine Insertable, Wave Solderable.
Surface Mount and Tape & R.
