LCA182S, LCA182 Normally Open OptMOS Relay

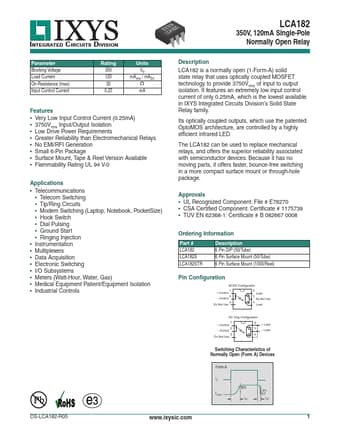

📥 Download Datasheet  Datasheet Preview Page 1

Description

INTEGRATED CIRCUITS DIVISION LCA182 350V, 120mA Single-Pole Normally Open Relay Parameter Blocking Voltage Load Current On-Resistance (max) Input Co.
LCA182 is a normally open (1-Form-A) solid state relay that uses optically coupled MOSFET technology to provide 3750Vrms of input to output isolation.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCA182S, LCA182. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LCA182S, LCA182
Manufacturer
IXYS
File Size
149.31 KB
Datasheet
LCA182-IXYS.pdf
Description
Normally Open OptMOS Relay
Note
This datasheet PDF includes multiple part numbers: LCA182S, LCA182.
Please refer to the document for exact specifications by model.

Features

* Very Low Input Control Current (0.25mA)
* 3750Vrms Input/Output Isolation
* Low Drive Power Requirements
* Greater Reliability than Electromechanical Relays
* No EMI/RFI Generation
* Small 6-Pin Package
* Surface Mount, Tape & Reel Version Av

Applications

* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, PocketSize)
* Hook Switch
* Dial Pulsing
* Ground Start
* Ringing Injection
* Instrumentation
* Multiplexers
* Dat
