LCA126 - Single Pole OptoMOS Relays

LCA126 Description

LCA126 Single Pole OptoMOS® Relays Load Voltage Load Current Max RON LCA126 250 170 15 Units V mA Ω .
LCA126 is a 250V, 170mA, 15Ω 1-Form-A relay. Small 6 Pin DIP Package. Low Drive Power.

LCA126 Features

* enhanced on-resistance. Features
* Small 6 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circuits
* 3750VRMS Input/Output Isolation
* FCC Compatible

LCA126 Applications

* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, Pocket Size)
* Hookswitch
* Dial Pulsing
* Ground Start
* Ringer Injection
* Instrumentation
* Multiplexers
* Data

📥 Download Datasheet

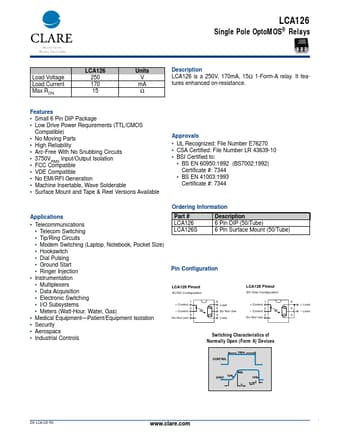

Preview of LCA126 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LCA126
Manufacturer
Clare
File Size
100.00 KB
Datasheet
LCA126_ClareInc..pdf
Description
Single Pole OptoMOS Relays
