LCA15C (LCA05C - LCA24C) LOW CAPACITANCE TVS ARRAY

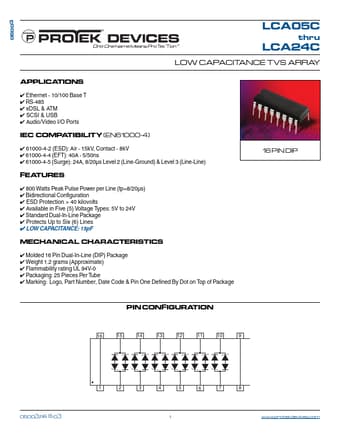

05003 LCA05C thru Only One Name Means ProT ek’Tion™ LCA24C LOW CAPACIT ANCE TVS ARRA Y APPLICA TIONS ✔ Ethernet - 10/100 Base T ✔ RS-485 ✔ xDSL & ATM ✔ SCSI & USB ✔ Audio/Video I/O Ports IEC COMPA TIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns ✔ 61000-4-5 (Surge): 24A, 8/20µs Level 2 (Line-Ground) & Level 3 (Line-Line) FEA TURES ✔ 800 Watts Peak Pulse Power per Line (tp=8/20µs) ✔ Bidirectional Configuration ✔ ESD Protection > 40 kilovolts ✔ A.
