LCA05C - (LCA05C - LCA24C) LOW CAPACITANCE TVS ARRAY

LCA05C Description

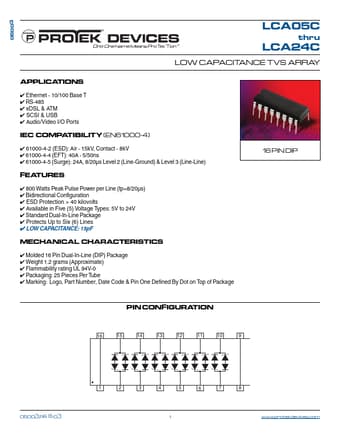

05003 LCA05C thru Only One Name Means ProT ek’Tion™ LCA24C LOW CAPACIT ANCE TVS ARRA Y APPLICA TIONS ✔ Ethernet - 10/100 Base T ✔ RS-485 ✔ xDSL & A.

LCA05C Applications

* the LCA Series provides up to six (6) lines of protection in a common-mode configuration as depicted in Figure 1. Circuit connectivity is as follows: ✔ Pins 2, 3, 4, 5, 6, and 7 are connected to ground. ✔ Pins 15 and 14 connected to Port #1 D- and D+. ✔ Pins 13 and 12 connected to Port #2 D+ and D-
