Datasheet Details
Part number:
LCA12C, LCA05C
Manufacturer:
ETC
File Size:
196.19 KB
Description:

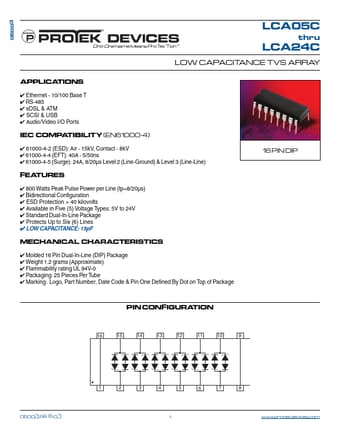

(LCA05C - LCA24C) LOW CAPACITANCE TVS ARRAY
Note:
This datasheet PDF includes multiple part numbers: LCA12C, LCA05C.
Please refer to the document for exact specifications by model.
Applications
* the LCA Series provides up to six (6) lines of protection in a common-mode configuration as depicted in Figure 1. Circuit connectivity is as follows: ✔ Pins 2, 3, 4, 5, 6, and 7 are connected to ground. ✔ Pins 15 and 14 connected to Port #1 D- and D+. ✔ Pins 13 and 12 connected to Port #2 D+ and D-LCA12C Distributors
