LCA110 - Normally Open OptoMOS Relay

LCA110 Description

INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) Ratings 350 120 35 Units VP mArms & mADC  .
The LCA110 is a normally open (1-Form-A) Solid State Relay which uses optically coupled MOSFET technology to provide 3750Vrms of input to output isola.

LCA110 Features

* 3750Vrms Input/Output Isolation
* Low Drive Power Requirements (TTL/CMOS Compatible)
* Greater Reliability than Electromechanical Relays
* No EMI/RFI Generation
* Small 6-Pin Package
* Machine Insertable, Wave Solderable
* Surface Mount Tape

LCA110 Applications

* Instrumentation
* Multiplexers
* Data Acquisition
* Electronic Switching
* I/O Subsystems
* Meters (Watt-Hour, Water, Gas)
* Medical Equipment
* Patient/Equipment Isolation
* Security
* Industrial Controls LCA110 350V,

📥 Download Datasheet

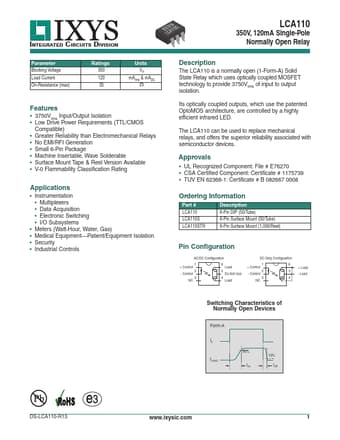

Preview of LCA110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LCA110
Manufacturer
IXYS
File Size
149.37 KB
Datasheet
LCA110-IXYS.pdf
Description
Normally Open OptoMOS Relay
