M1022LC200 Soft Recovery Diode

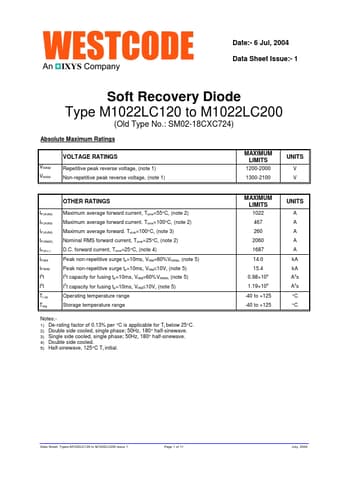

Date:- 6 Jul, 2004 Data Sheet Issue:- 1 Soft Recovery Diode Type M1022LC120 to M1022LC200 (Old Type No.: SM02-18CXC724) Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1200-2000 1300-2100 UNITS V V IF(AVM) IF(AVM) IF(AVM) IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (no.
