M1242NC260 Datasheet - IXYS

M1242NC260 Soft Recovery Diode

Date:- 20 Oct 2014 Data Sheet Issue:- 2 Soft Recovery Diode Type M1242N#260 to M1242N#360 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2600-3600 2700-3700 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) If(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (note 2) Maximum average forward..

M1242NC260 Datasheet (640.88 KB)

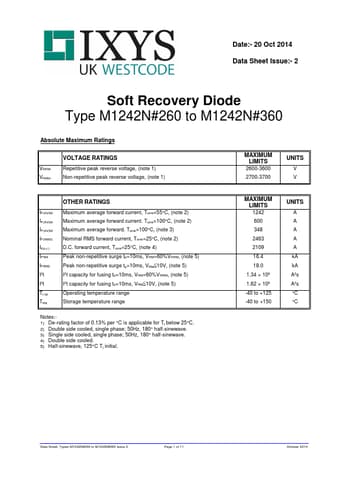

Preview of M1242NC260 PDF

Datasheet Details

Part number:

M1242NC260

Manufacturer:

IXYS

File Size:

640.88 KB

Description:

Soft recovery diode.
