MCD132-08io1 - Thyristor / Diode Module

MCD132-08io1 Description

Thyristor Diode Module Phase leg Part number MCD132-08io1 3 1 5 42 MCD132-08io1 VRRM I TAV VT = 2x 800 V = 130 A = 1.08 V Backside: isolated Fea.

MCD132-08io1 Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

MCD132-08io1 Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: Y4
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB

📥 Download Datasheet

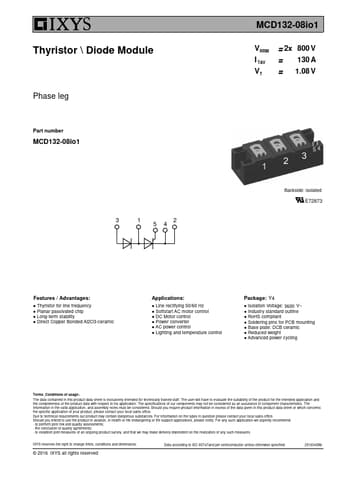

Preview of MCD132-08io1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCD132-08io1
Manufacturer
IXYS
File Size
212.59 KB
Datasheet
MCD132-08io1-IXYS.pdf
Description
Thyristor / Diode Module
