MCD132-16io1 - Thyristor / Diode Module

MCD132-16io1 Description

Thyristor Diode Module Phase leg Part number MCD132-16io1 3 1 5 42 MCD132-16io1 VRRM I TAV VT = 2x 1600 V = 130 A = 1.08 V Backside: isolated Fe.

MCD132-16io1 Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

MCD132-16io1 Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: Y4
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB

📥 Download Datasheet

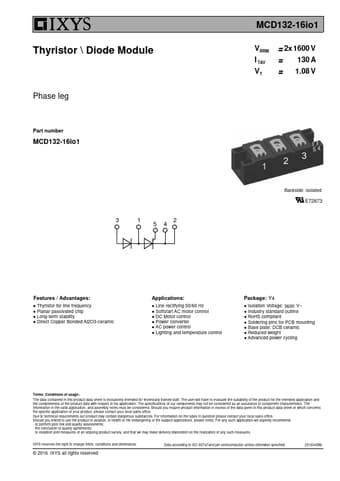

Preview of MCD132-16io1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCD132-16io1
Manufacturer
IXYS
File Size
212.72 KB
Datasheet
MCD132-16io1-IXYS.pdf
Description
Thyristor / Diode Module
