MCD162-16io1B - TThyristor / Diode Module

MCD162-16io1B Description

Thyristor Diode Module Phase leg Part number MCD162-16io1B 3 1 5 42 MCD162-16io1B VRRM I TAV VT = 2x 1600 V = 181 A = 1.03 V Backside: isolated.

MCD162-16io1B Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

MCD162-16io1B Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: Y4
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB

📥 Download Datasheet

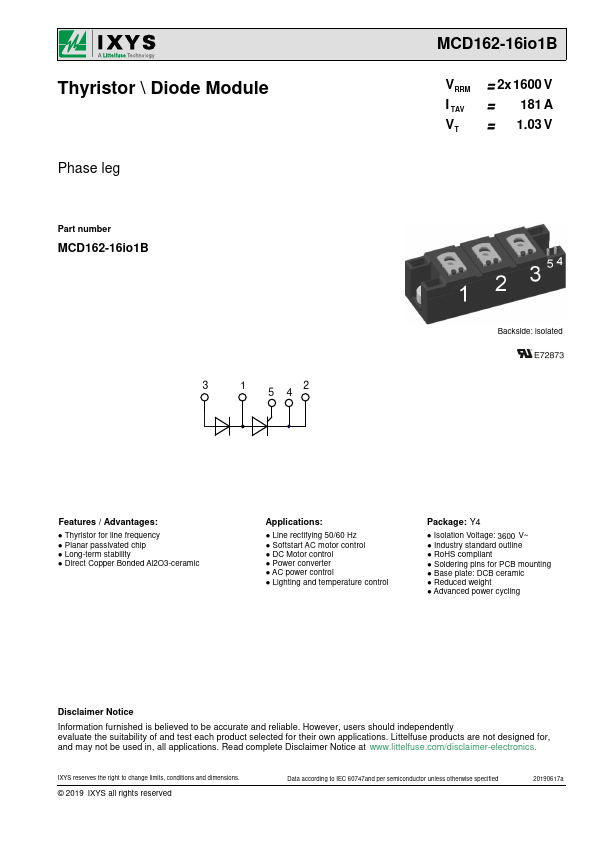

Preview of MCD162-16io1B PDF

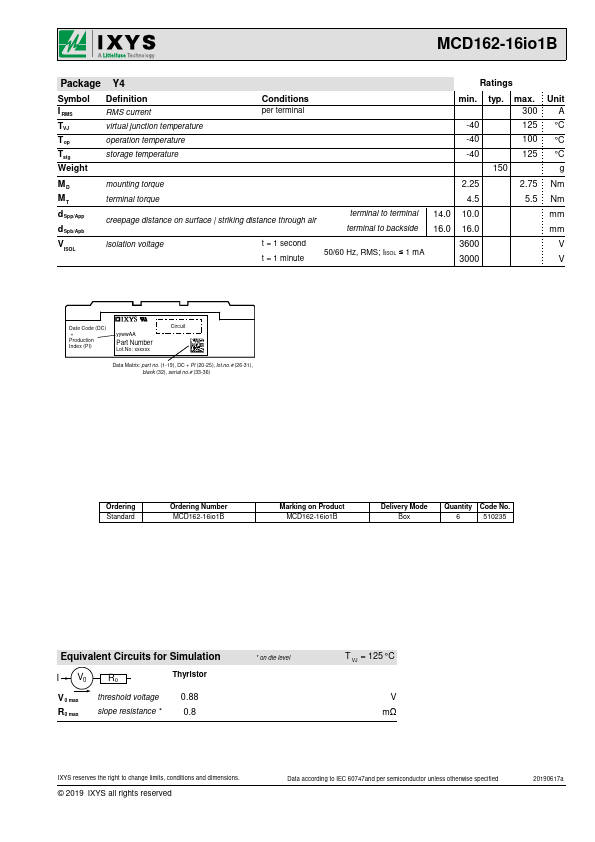

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCD162-16io1B
Manufacturer
IXYS
File Size
213.74 KB
Datasheet
MCD162-16io1B-IXYS.pdf
Description
TThyristor / Diode Module
