MDO500-22N1

High Voltage Standard Rectifier Module

IXYS

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	IXYS Corporation	MDO500-22N1	MDO500-22N1	DIODE STANDARD 2200V 560A Y1CU	DigiKey	38	10 units	$154.28	🛒 Buy Now

Download Datasheet (214.15 KB)

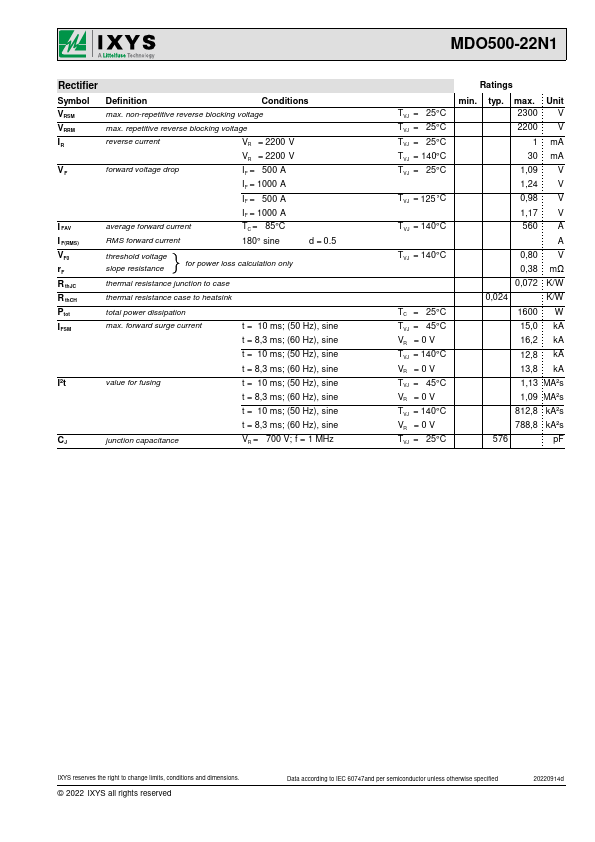

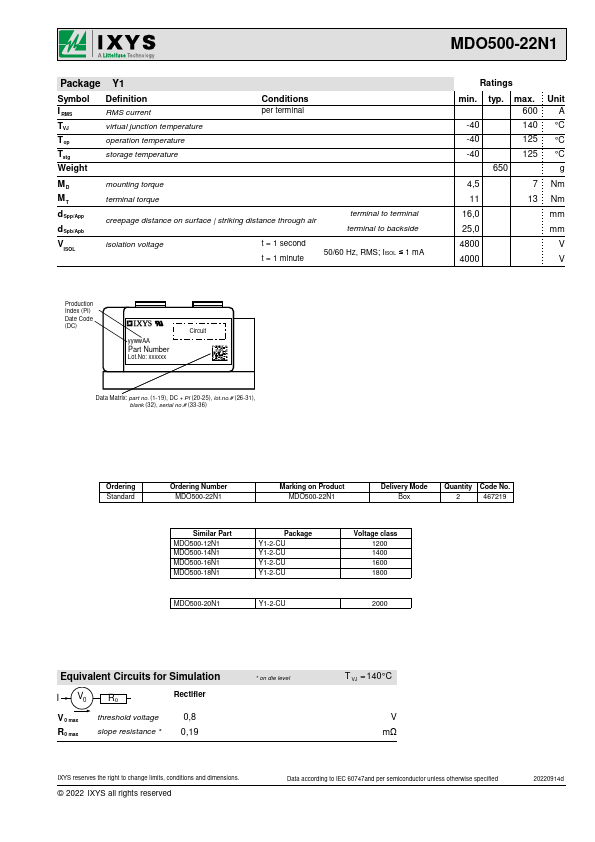

MDO500-22N1 Datasheet Preview — Preview of MDO500-22N1 Datasheet

Datasheet Details

Part number:

MDO500-22N1

Manufacturer:

IXYS

File Size:

214.15 KB

Description:

High voltage standard rectifier module.
High Voltage Standard Rectifier Module Single Diode MDO500-22N1 VRRM = 2200 V I FAV = 560 A VF.
= 0.98 V Part number MDO500-22N1 23 Backside: isolated Features / Advantages: * Planar passivat.

✔ MDO500-22N1 Features

/ Advantages:
Planar passivated chips
Very low leakage current
Very low forward voltage drop
Improved thermal behaviour Applications:
Diode for main rectificat

✔ MDO500-22N1 Application

Diode for main rectification
For single and three phase bridge configurations
Supplies for DC power e
