MEO550-02DA Fast Recovery Epitaxial Diode

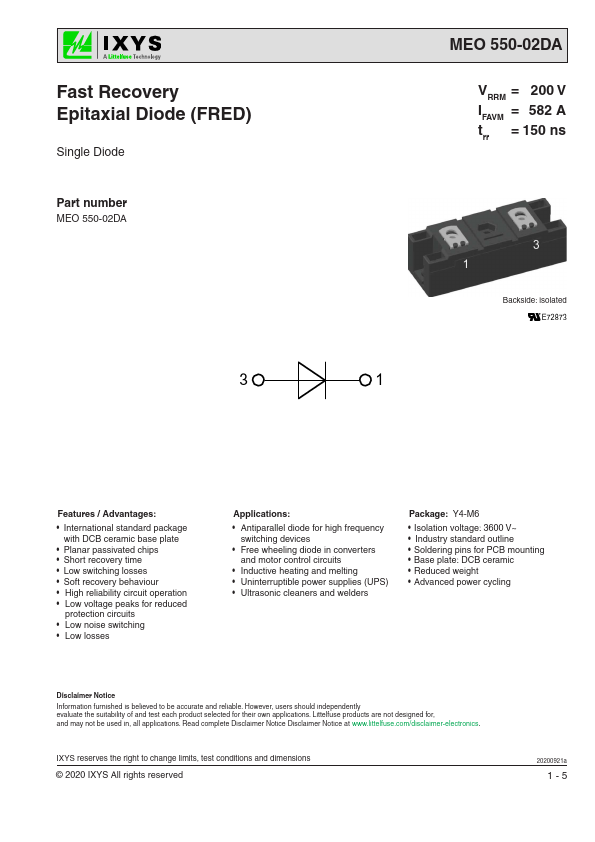

📥 Download Datasheet  Datasheet Preview Page 1

Description

Fast Recovery Epitaxial Diode (FRED) Single Diode Part number MEO 550-02DA 3 MEO 550-02DA VRRM = 200 V IFAVM = 582 A trr = 150 ns Backside: isolated .

📥 Download Datasheet

Preview of MEO550-02DA PDF

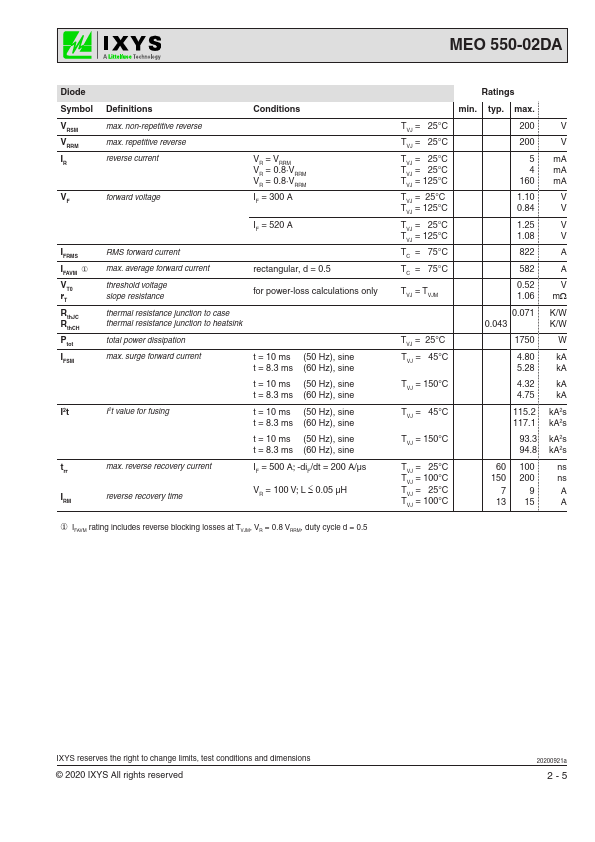

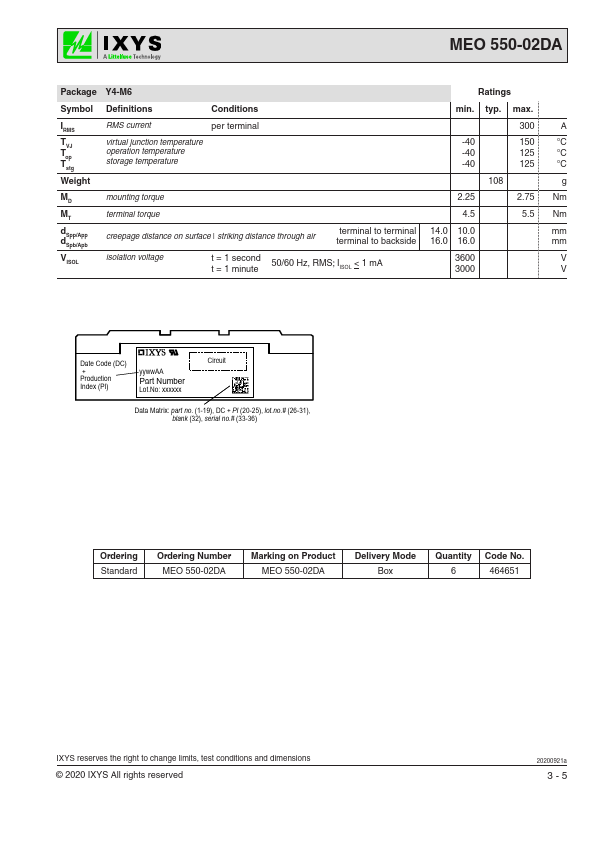

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MEO550-02DA
Manufacturer
IXYS
File Size
215.42 KB
Datasheet
MEO550-02DA_IXYSCorporation.pdf
Description
Fast Recovery Epitaxial Diode

Features

* / Advantages:
* International standard package with DCB ceramic base plate
* Planar passivated chips
* Short recovery time
* Low switching losses
* Soft recovery behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits
* Low n

Applications

* Antiparallel diode for high frequency switching devices
* Free wheeling diode in converters and motor control circuits
* Inductive heating and melting
* Uninterruptible power supplies (UPS)
* Ultrasonic cleaners and welders Package: Y4-M6
* Isolation voltage: 3600 V~
