N3839TC300 Datasheet - IXYS

N3839TC300 Phase Control Thyristor

WESTCODE An IXYS Company Date:- 22 Oct, 2003 Data Sheet Issue:- 1 Phase Control Thyristor Types N3839TC300 to N3839TC350 Old Type No.: N1663CH30-35 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3000-3500 3000-3500 3000-3500 3100-3600 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(A.

N3839TC300-IXYS.pdf

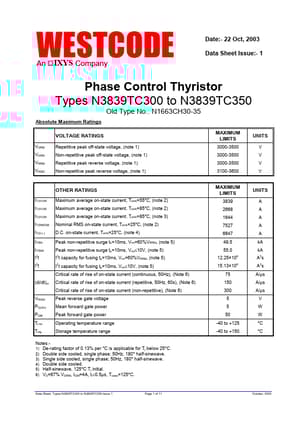

Preview of N3839TC300 PDF
N3839TC300 Datasheet Preview Page 2 N3839TC300 Datasheet Preview Page 3

Datasheet Details

Part number:

N3839TC300

Manufacturer:

IXYS

File Size:

235.15 KB

Description:

Phase control thyristor.
