P0273SC12F Fast Turn-off Thyristor

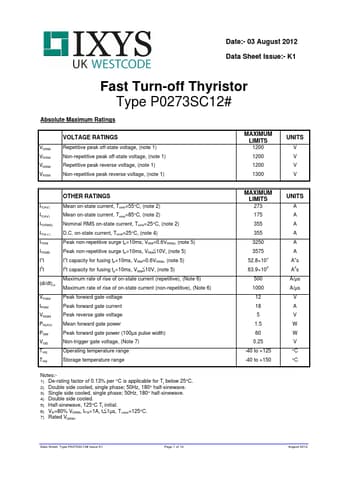

Date:- 03 August 2012 Data Sheet Issue:- K1 Fast Turn-off Thyristor Type P0273SC12# Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1200 1200 1200 1300 UNITS V V V V IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t (di/dt)cr VFGM IFGM VRGM PG(AV) PGM VGD THS Tstg OTHER RATINGS Mean .
