W1185LC380 Rectifier Diode

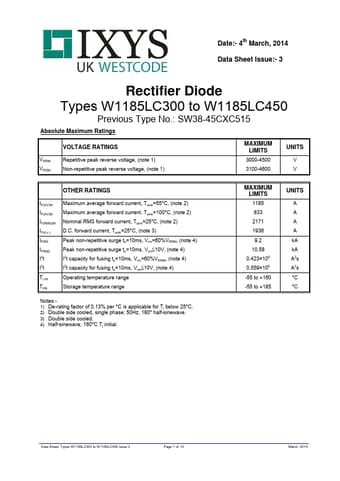

Date:- 4th March, 2014 Data Sheet Issue:- 3 Rectifier Diode Types W1185LC300 to W1185LC450 Previous Type No.: SW38-45CXC515 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3000-4500 3100-4600 UNITS V V OTHER RATINGS IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (note.

W1185LC380 Datasheet (332.66 KB)
