W11NM80

N-CHANNEL Power MOSFET

W11NM80 Features

* Order codes VDSS RDS(on) max RDS(on)

* Qg ID STB11NM80 STF11NM80 STI11NM80 800 V STP11NM80 STW11NM80 < 0.40 Ω 14Ω

* nC 11 A

* Low input capacitance and gate charge

* Low gate input resistance

* Best RDS(on)

* Qg in the industry Applications

* Switching applications D

W11NM80 General Description

These N-channel Power MOSFETs are developed using STMicroelectronics' revolutionary MDmesh™ technology, which associates the multiple drain process with the company's PowerMESH™ horizontal layout. These devices offer extremely low on-resistance, high dv/dt and excellent avalanche characteristics. Ut.

W11NM80 Datasheet (476.91 KB)

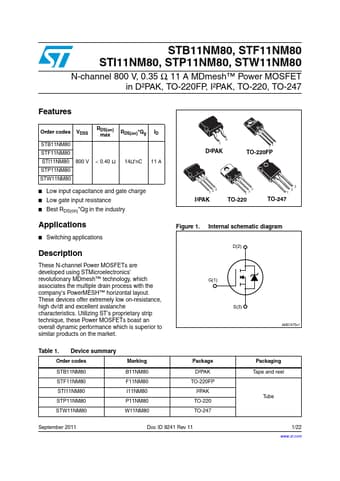

Preview of W11NM80 PDF

Datasheet Details

Part number:

W11NM80

Manufacturer:

STMicroelectronics ↗

File Size:

476.91 KB

Description:

N-channel power mosfet.
STB11NM80, STF11NM80 STI11NM80, STP11NM80, STW11NM80 N-channel 800 V, 0.35 Ω, 11 A MDmesh™ Power MOSFET in D²PAK, TO-220FP, I²PAK, TO-220, TO-247 Fea.
