W11NK100Z

STW11NK100Z

W11NK100Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

W11NK100Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements .

W11NK100Z Datasheet (287.28 KB)

Preview of W11NK100Z PDF

Datasheet Details

Part number:

W11NK100Z

Manufacturer:

STMicroelectronics ↗

File Size:

287.28 KB

Description:

Stw11nk100z.

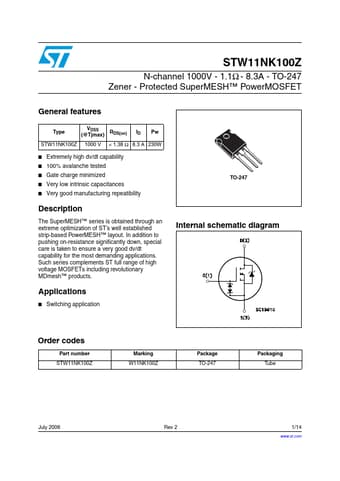

STW11NK100Z N-CHANNEL 1000V - 1.1Ω - 8.3A TO-247 Zener-Protected SuperMESH™Power MOSFET TYPE VDSS RDS(on) ID Pw STW11NK100Z 1000 V < 1.38 Ω 8.3 A.
