W3697VC220 Datasheet - IXYS

W3697VC220 Rectifier Diode

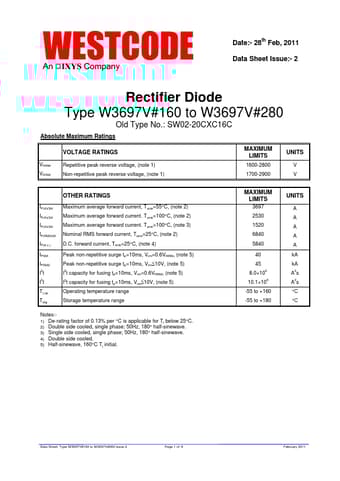

Date:- 28th Feb, 2011 Data Sheet Issue:- 2 Rectifier Diode Type W3697V#160 to W3697V#280 Old Type No.: SW02-20CXC16C Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1600-2800 1700-2900 UNITS V V OTHER RATINGS IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (note.

W3697VC220 Datasheet (123.05 KB)
