W360, N- & P-Channel 100V MOSFET

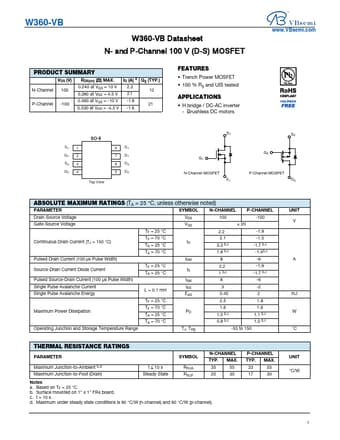

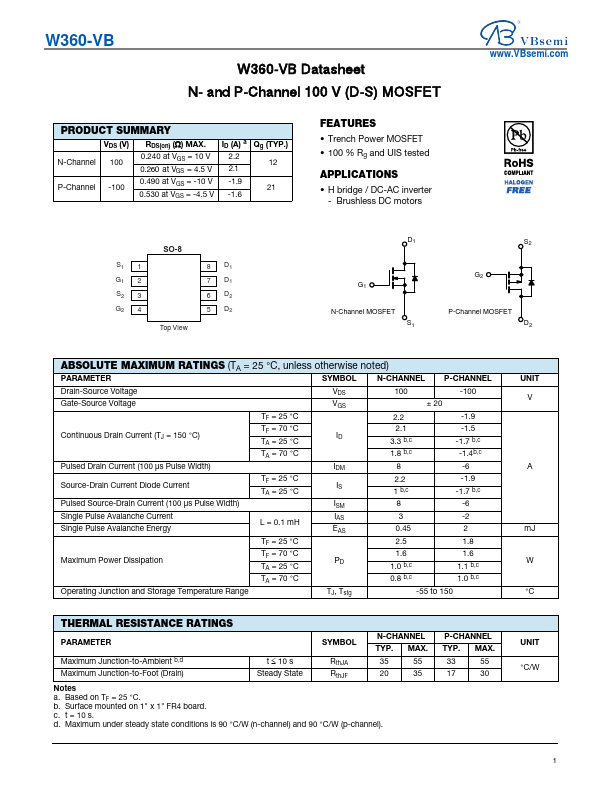

W360-VB W360-VB Datasheet N- and P-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () MAX.ID (A) a Qg (TYP.) N-Channel 100 0.240 at .

datasheet Preview Page 1 from Datasheet4u.com

W360-VBsemi.pdf

W360 Datasheet Preview — Preview of W360 PDF

Datasheet Details

Part number:

W360

Manufacturer:

VBsemi

File Size:

400.33 KB

Description:

N- & P-Channel 100V MOSFET

Features

* Trench Power MOSFET

Applications

* H bridge / DC-AC inverter - Brushless DC motors www. VBsemi. com S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 G1 N-Channel MOSFET S1 S2 G2 P-Channel MOSFET D2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL N-CHANNEL P-CHANNEL Drain-Sourc
