W3841VC300 Datasheet - IXYS

W3841VC300 Rectifier Diode

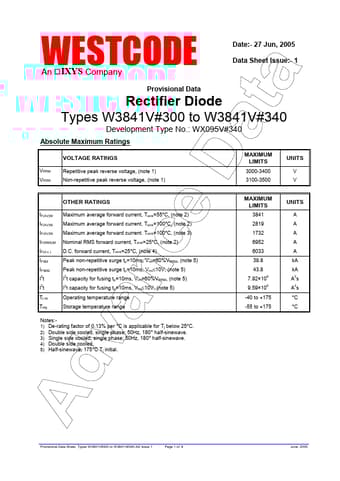

WESTCODE An IXYS Company Date:- 27 Jun, 2005 Data Sheet Issue:- 1 Provisional Data Rectifier Diode Types W3841V#300 to W3841V#340 Development Type No.: WX095V#340 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3000-3400 3100-3500 UNITS V V OTHER RATINGS IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C,.

W3841VC300 Datasheet (224.02 KB)
