ISG4100x - Mobile Key Scan I/O companion

ISG4100x Description

Imagis Co., Ltd.ISG4100x Preliminary Datasheet 1.Overview 1.1..
The ISG4100x Mobile Key Scan I/O companion is a dedicated device to unburden a host processor from scanning a matrix-addressed keypad.

ISG4100x Features

* 1.2.1. z z z z z z z z z z z z Features Supports keypad matrices of up to 8 x 8 keys (Max 64 keys) Supports multiple-key detection Supports long key-press detection Key-Scan Event storage in a FIFO buffer for up to 16 events Hardware Interrupt at the FIFO Level Auto-Sleep and Auto-WakeUp to minimiz

📥 Download Datasheet

Preview of ISG4100x PDF

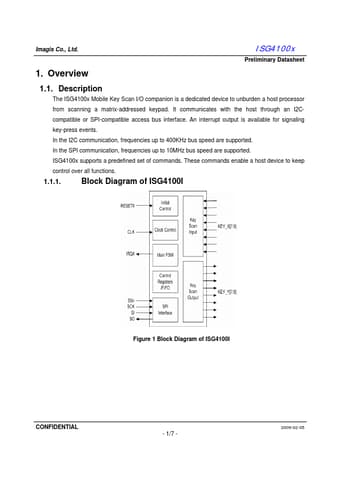

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISG4100x
Manufacturer
Imagis Semiconductor
File Size
113.50 KB
Datasheet
ISG4100x_ImagisSemiconductor.pdf
Description
Mobile Key Scan I/O companion
