ISG510067 - DTV IF AGC AMPLIFIER

ISG510067 Description

PRELIMINARY DATA SHEET ISG510067 DTV IF AGC AMPLIFIER .
The ISG510067 consists of an input AGC amplifier and a video/AGC amplifier.

ISG510067 Features

* 3.3 V SINGLE SUPPLY OPERATION
* LOW POWER CONSUMPTION (330 mW) SAW FILTER FUNCTIONAL DIAGRAM
* LOW DISTORTION
* 85 dB TOTAL VOLTAGE GAIN
* 54 dB TOTAL GAIN CONTROL RANGE
* 25-100 MHZ OPERATION 1, X VDD 28,18 27,17 26,19 25, X 24,15 23,14 22

ISG510067 Applications

* Digital Terrestrial Tuners
* Digital TV Sets. RF AGC ELECTRICAL CHARACTERISTICS SYMBOLS PARAMETERS AND CONDITIONS RF Performance RFIN GMAX VAGC AGC IM3 IFOUT NF GINPUT GVIDEO (TA = 25°C, VDD = 3.3 V, unless otherwise specified) www. DataSheet4U. com UNITS MIN TYP MAX RF Input Fr

📥 Download Datasheet

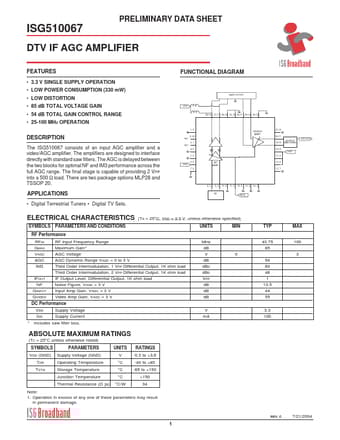

Preview of ISG510067 PDF
