ISG56525 Datasheet, Amplifier, Sirenza Microdevices

ISG56525 Features

  • Amplifier • FLAT GAIN RESPONSE FROM 5 TO 65 MHz: f = ±0.2 dB • INPUT AND OUTPUT MATCHING TO 75 OHMS: RL = > 19 dB • LOW DISTORTION: P1dB = 78 dBmV • LOW NOISE: 3.1dB • AUTOMATED SURFACE MOUNT CON

PDF File Details

Part number:

ISG56525

Manufacturer:

Sirenza Microdevices

File Size:

100.75kb

Download:

📄 Datasheet

Description:

Silicon catv 25db hybrid amplifier. The ISG56525 is a low noise, low distortion hybrid amplifier specified for use in return path HFC Cable TV applications. The ISG56525

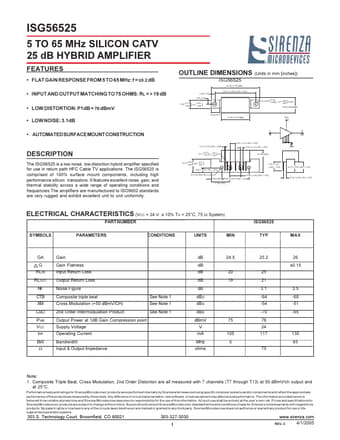

Datasheet Preview: ISG56525 📥 Download PDF (100.75kb)
Page 2 of ISG56525

ISG56525 Application

  • Applications The ISG56525 is comprised of 100% surface mount components, including high performance silicon transistors. It features excellent nois
