Part number:
ISG56530
Manufacturer:
Sirenza Microdevices
File Size:
102.46 KB
Description:
Silicon catv 30 db hybrid amplifier.

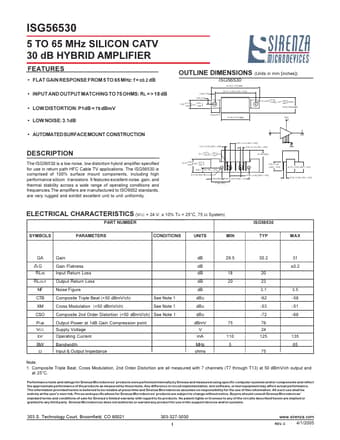

ISG56530_SirenzaMicrodevices.pdf
Datasheet Details
ISG56530 Features
* FLAT GAIN RESPONSE FROM 5 TO 65 MHz: f = ±0.2 dB INPUT AND OUTPUT MATCHING TO 75 OHMS: RL = > 18 dB LOW DISTORTION: P1dB = 78 dBmV LOW NOISE: 3.1dB AUTOMATED SURFACE MOUNT CONSTRUCTION 5.08 ± 0.13 [.200 ± .005] 0.51 ± 0.05 [.020 ± .002] 2.54 ± 0.13 [.100 ± .005] 8.00 +0.13 -0.20 OUTLINE D
ISG56530_SirenzaMicrodevices.pdf
Datasheet Details
ISG56530
Sirenza Microdevices
102.46 KB
Silicon catv 30 db hybrid amplifier.
