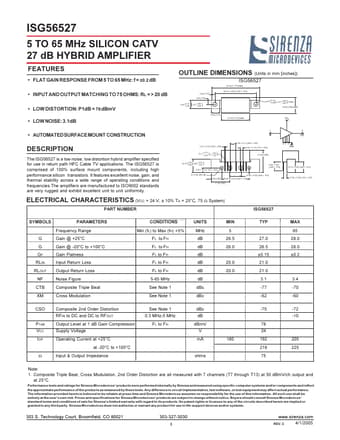

ISG56527 Datasheet, Amplifier, Sirenza Microdevices

ISG56527 Features

• Amplifier • FLAT GAIN RESPONSE FROM 5 TO 65 MHz: f = ±0.2 dB • INPUT AND OUTPUT MATCHING TO 75 OHMS: RL = > 20 dB • LOW DISTORTION: P1dB = 78 dBmV • LOW NOISE: 3.1dB • AUTOMATED SURFACE MOUNT CON

PDF File Details

Part number:

ISG56527

Manufacturer:

Sirenza Microdevices

File Size:

102.58kb

Download:

📄 Datasheet

Description:

Silicon catv 27db hybrid amplifier. The ISG56527 is a low noise, low distortion hybrid amplifier specified for use in return path HFC Cable TV applications. The ISG56527

ISG56527 Application

• Applications The ISG56527 is comprised of 100% surface mount components, including high performance silicon transistors. It features excellent nois
