ISG52124-L Datasheet, Amplifier, Sirenza Microdevices

ISG52124-L Features

  • Amplifier
  • FLAT GAIN RESPONSE FROM 5 TO 210 MHz: f = ±0.25 dB
  • INPUT AND OUTPUT MATCHING TO 75 OHMS: RL = > 18 dB
  • LOW VOLTAGE = 12V
  • LOW CURRENT 90 mA TYP 3.4

PDF File Details

Part number:

ISG52124-L

Manufacturer:

Sirenza Microdevices

File Size:

74.62kb

Download:

📄 Datasheet

Description:

Silicon catv 24 db low power hybrid amplifier. The ISG52124-L is a low Power 12V Broadband hybrid amplifier module developed for return path optical and RF applications in (HFC) CA

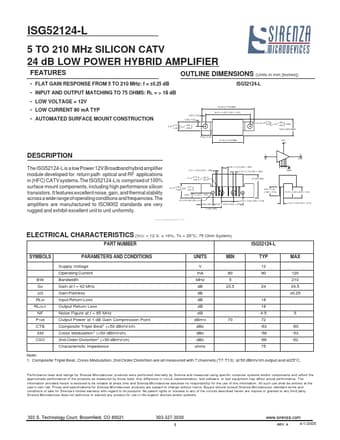

Datasheet Preview: ISG52124-L 📥 Download PDF (74.62kb)
Page 2 of ISG52124-L

ISG52124-L Application

  • Applications in (HFC) CATV systems.The ISG52124-L is comprised of 100% surface mount components, including high performance silicon transistors. It
