ILC708, ILC705 Datasheet - Impala Linear Corporation

ILC708 (ILC705 - ILC708) MP SUPERVISORY CIRCUIT

The ILC705/ILC706/ILC707/ILC708 are low cost microprocessor supervisory circuits that monitor power supplies in microprocessor based systems. Circuit functions include a watchdog timer, microprocessor reset, power failure warning and a debounced manual reset input. The ILC705 and ILC706 offer a watc.

ILC708 Features

* ! 4.4V or 4.65V Precision Voltage Monitor ! 200ms Reset Pulse Width ! Debounced TTL/CMOS Compatible Manual Reset Input ! Watchdog Timer with 1.6 sec Timeout (ILC705/ILC706) ! Voltage Monitor for Early Power Fail Warning or Low Battery Detect ! 8-Pin SOIC or DIP Package Supply voltage monitor levels

ILC705_ImpalaLinearCorporation.pdf

This datasheet PDF includes multiple part numbers: ILC708, ILC705. Please refer to the document for exact specifications by model.

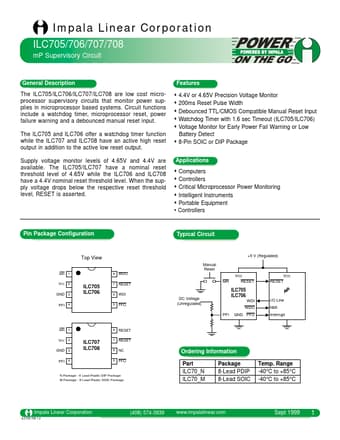

ILC708 Datasheet Preview Page 2 ILC708 Datasheet Preview Page 3

Datasheet Details

Part number:

ILC708, ILC705

Manufacturer:

Impala Linear Corporation

File Size:

73.12 KB

Description:

(ilc705 - ilc708) mp supervisory circuit.

Note:

This datasheet PDF includes multiple part numbers: ILC708, ILC705.
Please refer to the document for exact specifications by model.
