ILC5061

Power Supply reset Monitor with 1% Precision

ILC5061 Features

* All-CMOS design in SOT-23 or SC70 package ±1% precision in Reset Detection Only 1µA of Iq 2mA of sink current capability Built-in hysteresis of 5% of detection voltage Voltage options of 2.6, 2.9, 3.1, 4.4, and 4.6V fit most supervisory app

ILC5061 General Description

All-CMOS Monitor circuits in either a 3-lead SOT-23 or SC70 package offer the best performance in power consumption and accuracy. The ILC5061 comes in a series of ±1% accurate trip voltages to fit most microprocessor applications. Even though its output can sink 2mA, the device draws only 1µA in nor.

ILC5061 Datasheet (76.63 KB)

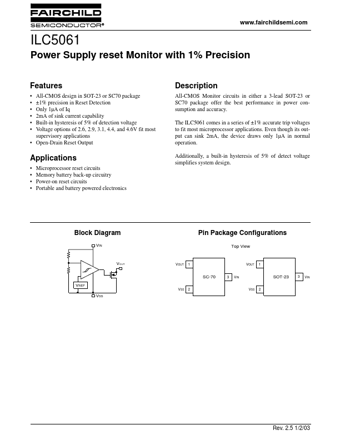

Preview of ILC5061 PDF

Datasheet Details

Part number:

ILC5061

Manufacturer:

Fairchild Semiconductor

File Size:

76.63 KB

Description:

Power supply reset monitor with 1% precision.
