ILC556N Datasheet - IK Semiconductor

ILC556N Dual Timer

TECHNICAL DATA ILC556N General purpose dual timer ILC556N/D is designed to be used: as high-precision pulse oscillator with adjustable frequency and on-off time ratio; for producing accurate time delays using external resistors and capacitors; as a timer in domestic appliances, in measuring equipment, computers; as functional units in electronic instruments. The timer may be used as oscillator producing accurate time delays and frequencies. In astable mode the pulse width of each circuit is co.

ILC556N_IKSemiconductor.pdf

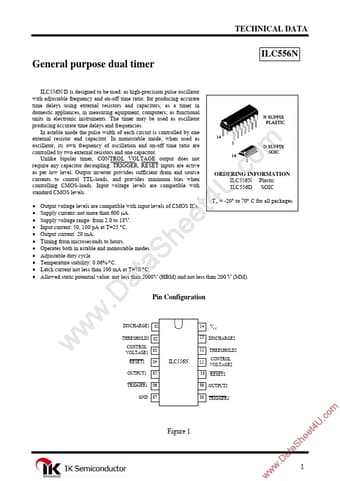

Preview of ILC556N PDF
ILC556N Datasheet Preview Page 2 ILC556N Datasheet Preview Page 3

Datasheet Details

Part number:

ILC556N

Manufacturer:

IK Semiconductor

File Size:

230.98 KB

Description:

Dual timer.
