ILC555 Datasheet - IK Semiconductor

ILC555 Timer

TECHNICAL DATA CMOS general purpose timer The ILC555 is CMOS RC timers providing significantly improved performance over the standard SE/NE555 and 355 timers, while at the same time being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIGGER and RESET currents, no crowbarring of the supply current during output transitions, higher frequency performance and no requirement to decouple.

ILC555_IKSemiconductor.pdf

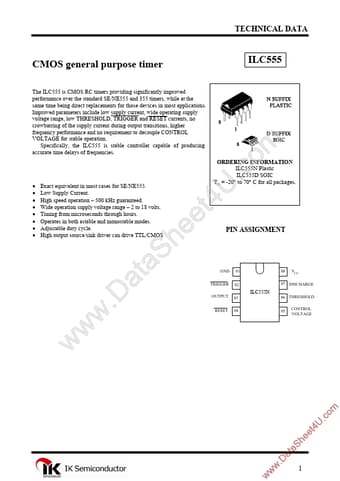

Preview of ILC555 PDF
ILC555 Datasheet Preview Page 2 ILC555 Datasheet Preview Page 3

Datasheet Details

Part number:

ILC555

Manufacturer:

IK Semiconductor

File Size:

245.86 KB

Description:

Timer.
