ILC5062

SOT-23 Power Supply reset Monitor with 1% precision

ILC5062 Features

* All-CMOS design in SOT-23 or SC70 package A grade ±1% precision in Reset Detection Standard grade : ±2% precision in Reset Detection Only 1µA of Iq Over 2mA of sink current capability Built-in hysteresis of 5% of detection voltage

ILC5062 General Description

All-CMOS voltage monitoring circuit in either a 3-lead SOT-23 or SC70 package offers the best performance in power consumption and accuracy. The ILC5062 is available in a series of ±1% (A-grade) or 2% (standard grade) accurate trip voltages to fit most microprocessor applications. Even though its ou.

ILC5062 Datasheet (507.02 KB)

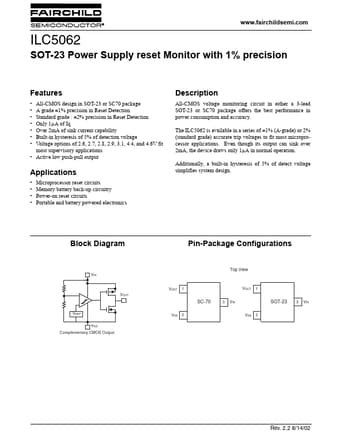

Preview of ILC5062 PDF

Datasheet Details

Part number:

ILC5062

Manufacturer:

Fairchild Semiconductor

File Size:

507.02 KB

Description:

Sot-23 power supply reset monitor with 1% precision.
