D5703 Datasheet, 2sd5703, Inchange Semiconductor Company

PDF File Details

Part number:

D5703

Manufacturer:

Inchange Semiconductor Company

File Size:

250.90kb

Download:

📄 Datasheet

Description:

2sd5703.

  • High Breakdown Voltage:VCBO= 1500V (Min)
  • High Switching Speed
  • Low Saturation Voltage APPLICATIONS

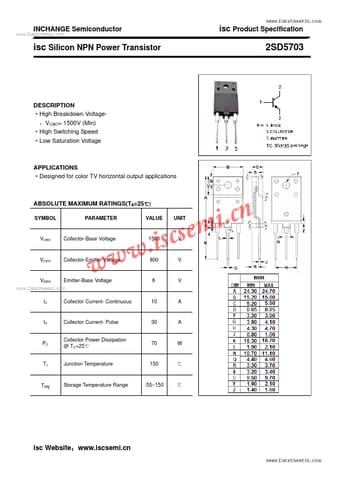

  • Datasheet Preview: D5703 📥 Download PDF (250.90kb)
    Page 2 of D5703

    D5703 Application

    • Applications
    • Designed for color TV horizontal output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VCBO Collector-Base
